STP100DA
In stock
Regular price
¥999,999 JPY
Couldn't load pickup availability

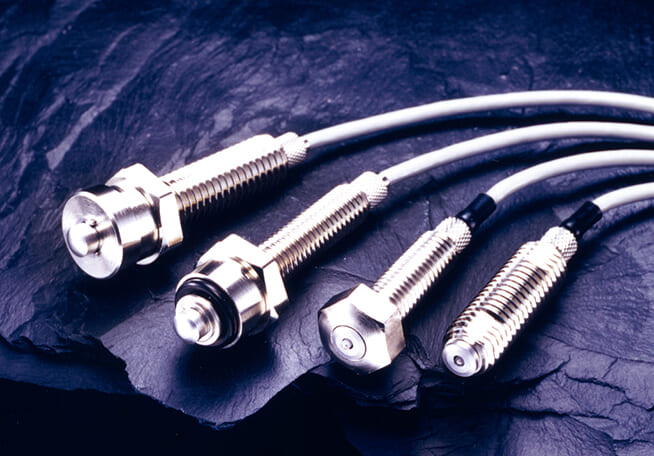

- STP100DA is suitable for seating check and backward / forward end check.
- Housing a built-in switch in a stopper bolt.
- Stable output of high precision signals.
Common specification (ST-series)
| Switch structure | Dry contact |
|---|---|
| Movement differential | 0 |
| Signal point | 0 .3 from stopper surface |
| Withstand load (N) | 5000N |
| Impact resistance (J) | 0.4J |
| Contact material | SUS HRC40 - 50 |
| Hardness of stopper surface | SUS HRC40 - 50 |
| Cable | Standard length 2m, Oil resistant φ2.8 / 2 cores, Tensile strength 30N, Minimum bending R7, Cable protector (Detachable) |
| Operating temperature range | 0℃ - 80℃ (Ice free) |
| Temperature drift | 0 (because of no amplifier) |
|---|---|
| Oscillation | 10 - 55Hz Total amplitude 1.5 for X, Y, Z each direction |
| Impact | 300m/s2 for X, Y, Z each direction |
| Contact rating | DC5V - DC24V Steady current: 10mA or less (Rush current: 20mA or less) When using the switch with LED, limit the current below 10mA |
| Standard accessory | Two fixing nuts for threaded type |
| Notes on repeatability | At operating speed 50 - 200mm/min (operating speed slower than 10mm/min is NOT recommended) |
Questions & Answers (ST-series)
-
How should the switch be contacted with detected objects?
Make contact with the detected object at right angle
(with diflection angle ±3°) -
Please let me know the LED display type.
LED display is placed on the cable which is 120mm distance from switch body.
It will turn on when the switch is ON.Don't Connect directly to the DC24V power supply. LED can be damaged.
-
How can I wire Metrol switches when replacing cuttently using proximity sensors?
For wiring, please refer to the following.
-
Are Metrol's cabtyre cables "Robot cables"?
Metrol's Cabtyre cables are used as Robot cables without any safety compromise since the working voltage and current are low, though cabtyre cables are not applicable to UL, CSA, EN or other safety standards.
However, Core-wire cables are not Robot cables. -
Are CE-Mark Machine Directives / Low Voltage Directives applicable to Metrol products?
Our products are applicable neither to CE-Mark Machine Directives nor to Low Voltage Directives.
-
Are Metrol products RoHS compliant?
Our products comply with RoHS Directive and use lead-free solder.
About Order
Please feel free to contact us.
