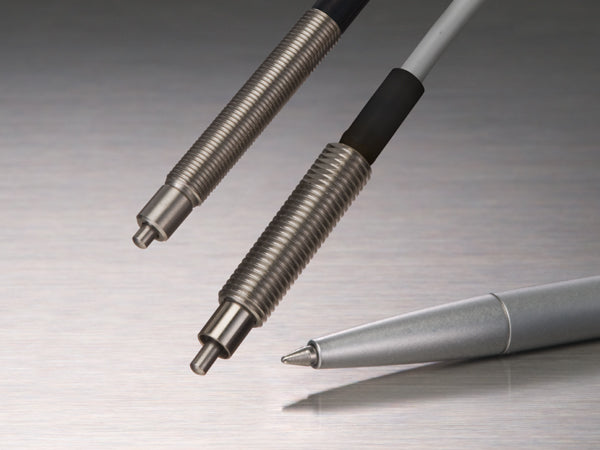

CS067A-HT1
In stock
Regular price
¥999,999 JPY
Couldn't load pickup availability
- CS067A-HT1 eliminate costly intermediate actuators and design the machine compact.
- Mutual interference doesn't occur.
- Stable output of high precision signals.
Common specification (HT-series)
| Switch structure | Dry contact |
|---|---|
| Movement differential | 0 |
| Contact material | SUS HRC |
| Case material | SUS303 |
| Cable | Standard length 2m, Heat resistant φ2.8 / 2 cores, AWG24, Tensile strength 30N, Minimum bending R28 |
| Operating temperature range | 0℃ - 200℃ |
| Temperature drift | 0 (because of no amplifier) |
|---|---|
| Oscillation | 10 - 55Hz Total amplitude 1.5 for X, Y, Z each direction |
| Impact | 300m/s2 for X, Y, Z each direction |
| Contact rating | DC5V - DC24V Steady current: 10mA or less (Rush current: 20mA or less) When using the switch with LED, limit the current below 10mA |
| Standard accessory | Two fixing nuts for threaded type |
| Notes on repeatability | At operating speed 50 - 200mm/min (operating speed slower than 10mm/min is NOT recommended) |
Questions & Answers (HT-series)
-

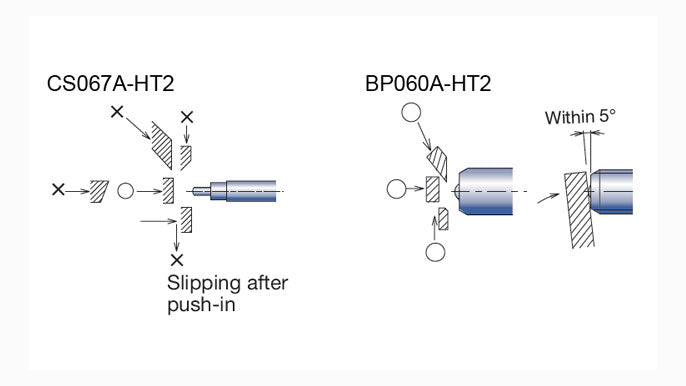

How should the switch be contacted with detected objects?
[CS067A-HT2]
Make contact with detected objects at right angle (within deflection angle ±3°).[BP060A-HT2]
Suitable for angled, sliding touch.
The degree required to turn on the switch when the detected object does not meet the switch end fully. -
How can I wire Metrol switches when replacing cuttently using proximity sensors?
For wiring, please refer to the following.
-
Are CE-Mark Machine Directives / Low Voltage Directives applicable to Metrol products?
Our products are applicable neither to CE-Mark Machine Directives nor to Low Voltage Directives.
-
Are Metrol products RoHS compliant?
Our products comply with RoHS Directive and use lead-free solder.
